Alignment and Levelling Check Record

.docxWord15.9 KBFree

Free Word template: Alignment and Levelling Check Record. Download for UK construction sites.

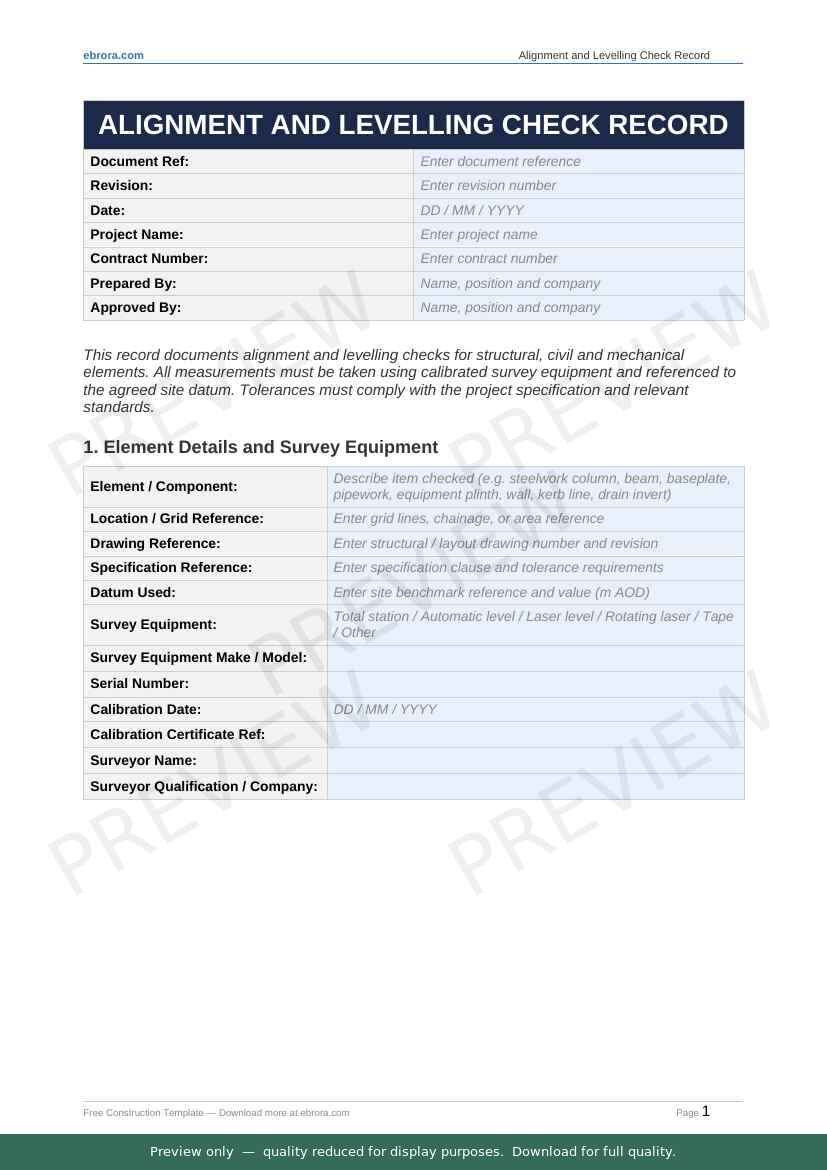

Preview of Alignment and Levelling Check Record - first two pages at A4 size
PREVIEW - EBRORA.COM

Download Alignment and Levelling Check Record

Word format · 15.9 KB · Free with account

What’s inside this template

The Alignment and Levelling Check Record Word document - taken from the file itself.

Sections

  1. Element Details and Survey Equipment
  2. Alignment and Level Readings
  3. Plumb Check (Vertical Elements)
  4. Summary
  5. Common Tolerance Reference

Table 1 columns

  • No.
  • Check Point Ref
  • Design (mm/m AOD)
  • Actual (mm/m AOD)
  • Deviation
  • Tolerance (+/-)
  • Pass / Fail
  • Comments

Table 2 columns

  • No.
  • Check Point Ref
  • Design Plumb
  • Actual Deviation (mm)
  • Height Measured (m)
  • Tolerance
  • Pass / Fail

References: BS EN 1090-2, NSCS, BS 8204-2, TR34, Sewers for Adoption, SHW, BS EN 13480, Project Specification, ITP
